JIB CRANES

Sparkline jib crane improves materials handling efficiency, flexibility and work flow along with increased productivity. We offer wide range of jib cranes and lifting capacity is up to 3.2t.

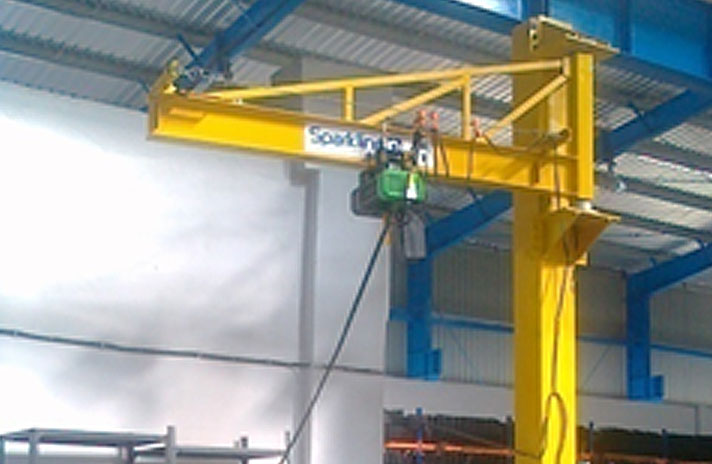

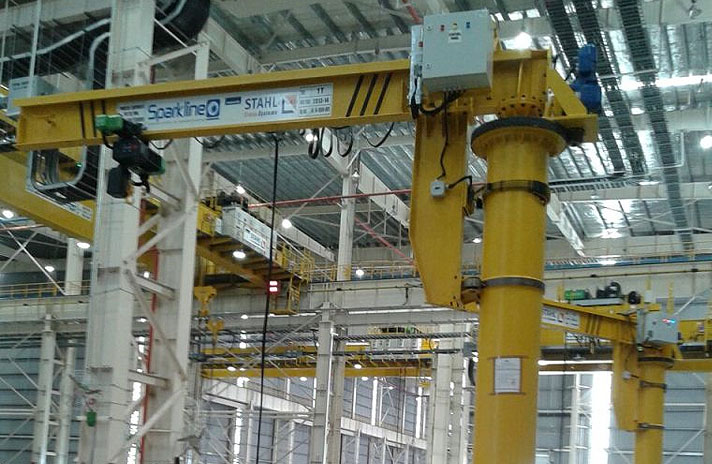

1. Column mounted jib crane -360° degree rotation The column is designed to give maximum strength and minimum deflection to resist bending, buckling, and crushing as well as wear by the roller assembly. The top bearing assembly utilizes a tapered roller bearing provided with a grease fitting for proper lubrication. It is designed to be mounted to a permanent concrete foundation which, in addition to anchoring the crane, acts basically as a counterweight for the forces exerted by the crane under maximum loading conditions. 2. Wall mounted jib crane -180° degree rotation This offers greatest potential under boom clearance because it can be installed more closely to the ceiling. Allows maximum usage of the work area, including work close to the existing structure. 3. Articulated jib crane -360° degree rotation Articulating jib cranes can move loads around corners and columns, reach into machinery and containers and service an area from close to the pivot point to the end of the boom for 360° of operation. It can be floor, wall, ceiling, or bridge crane mounted to best suit your application.

• Jib cranes are available in push pull or electrified and motor driven.
• King post made with bronze bush to have self-lubrication.
• Slewing range is available from 180°to 360°
• It is designed up to 125% factor of safety
• Suitable for both indoor & outdoor application
• The bearings are designed for a 5000 hours life cycle.
